NW1693T | NW1696T | NW1698 | NW1695T

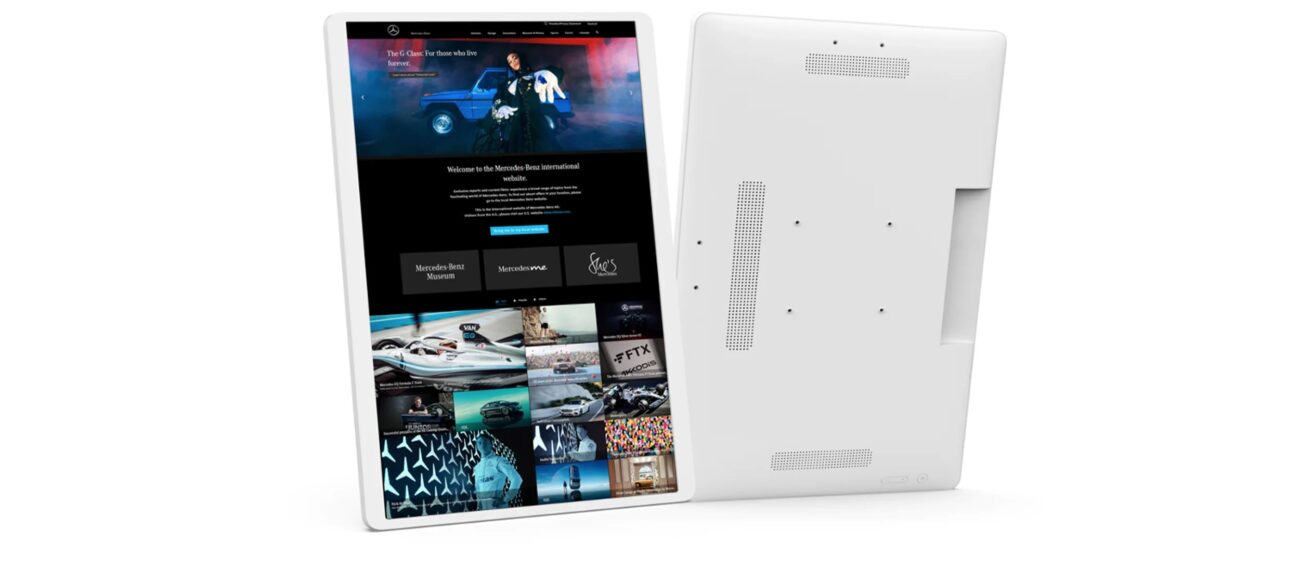

16-inch Touchscreen Signage
Features 1920*1200 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.
DISPLAY

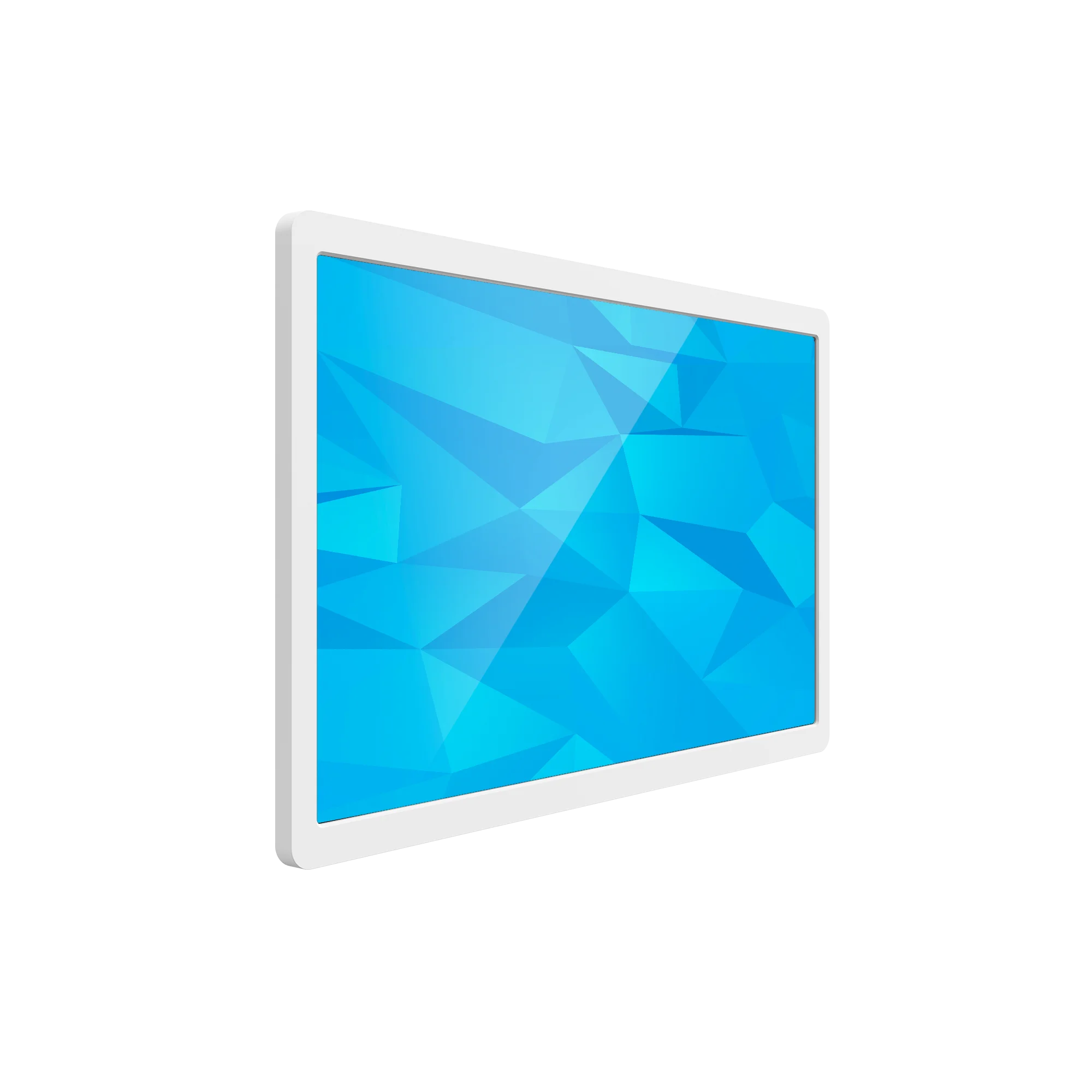

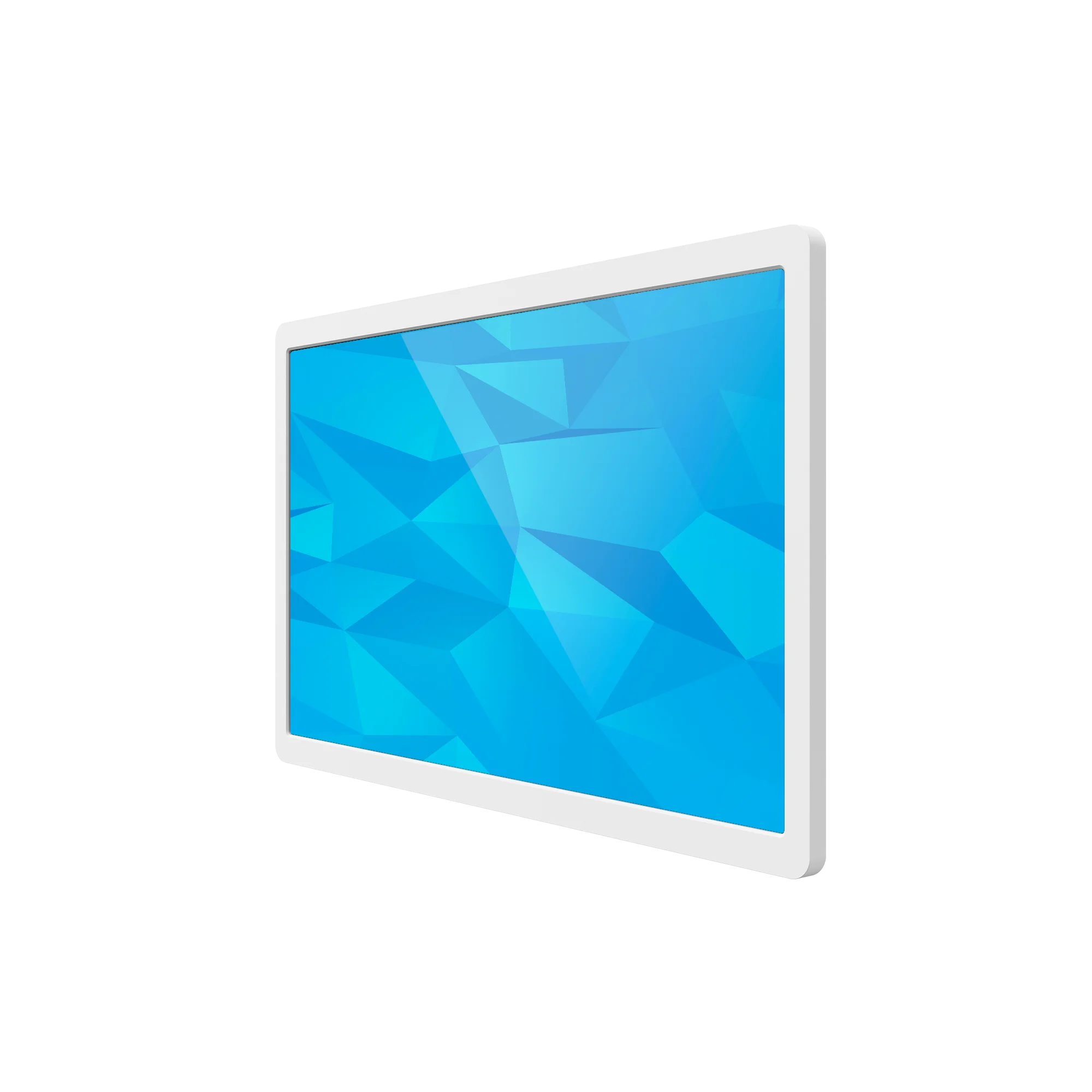

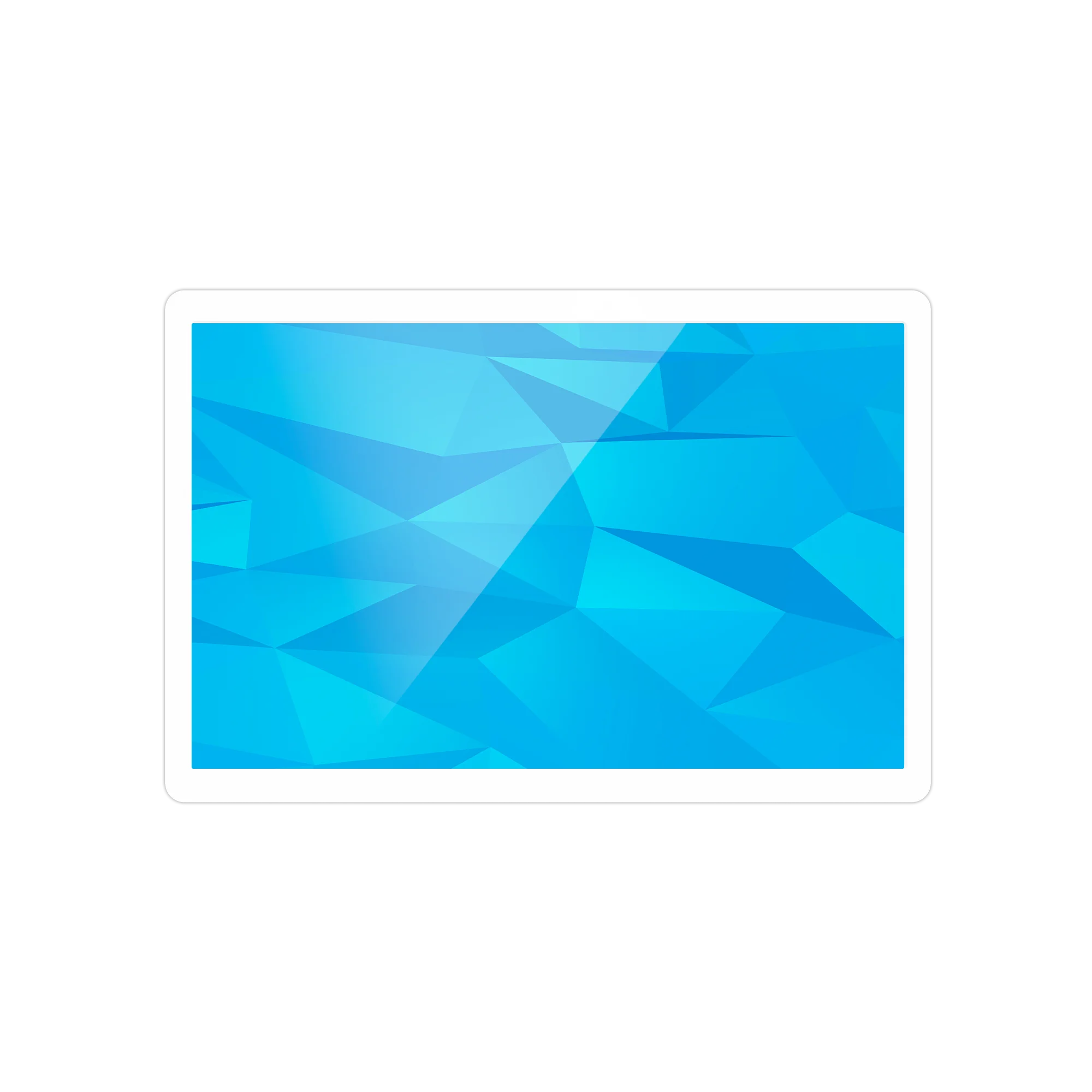

16-inch Touchscreen Signage
The portable monitor features a 16-inch touchscreen with a full HD resolution of 1920×1200. 10-point multi-touch screen enables multiple people to use a device at once, or one person can use multiple fingers for complex inputs, which streamlines workflow and improves efficiency.
Screen Size
16-Inch HD Display
Resolution
1920 × 1200
Aspect Ratio
16 : 10
Touchscreen
10-Point Multi-Touch
OPERATING SYSTEM

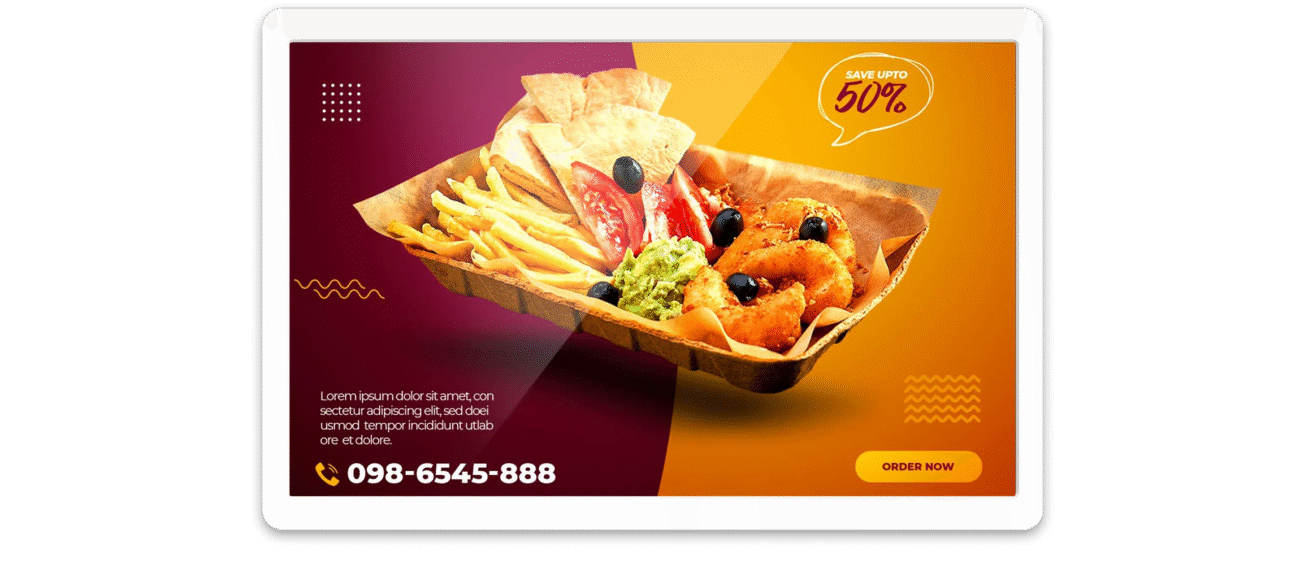

All You Can Stream and Cast.
Easily download your favorite apps on the display and enjoy with built-in dual speakers on ELC touchscreen signage. Personalize devices to suit your preferences and style with ease.

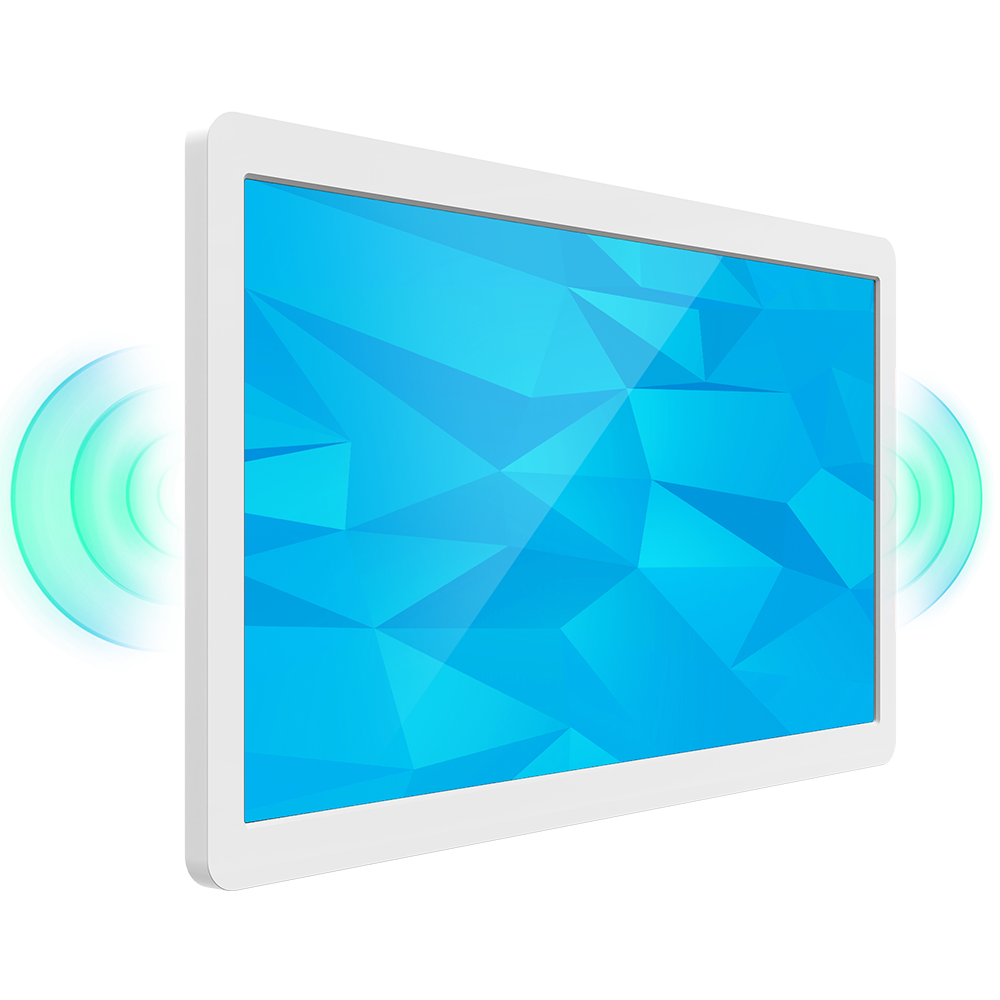

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One. Watch, Play, Work in style.
With built-in speakers and mic, ELC touchscreen signages free up space and making them a good choice for conference rooms, TV rooms, gathering spaces, and other rooms. Dual speakers create a more immersive stereo sound with a sense of directionality and space.

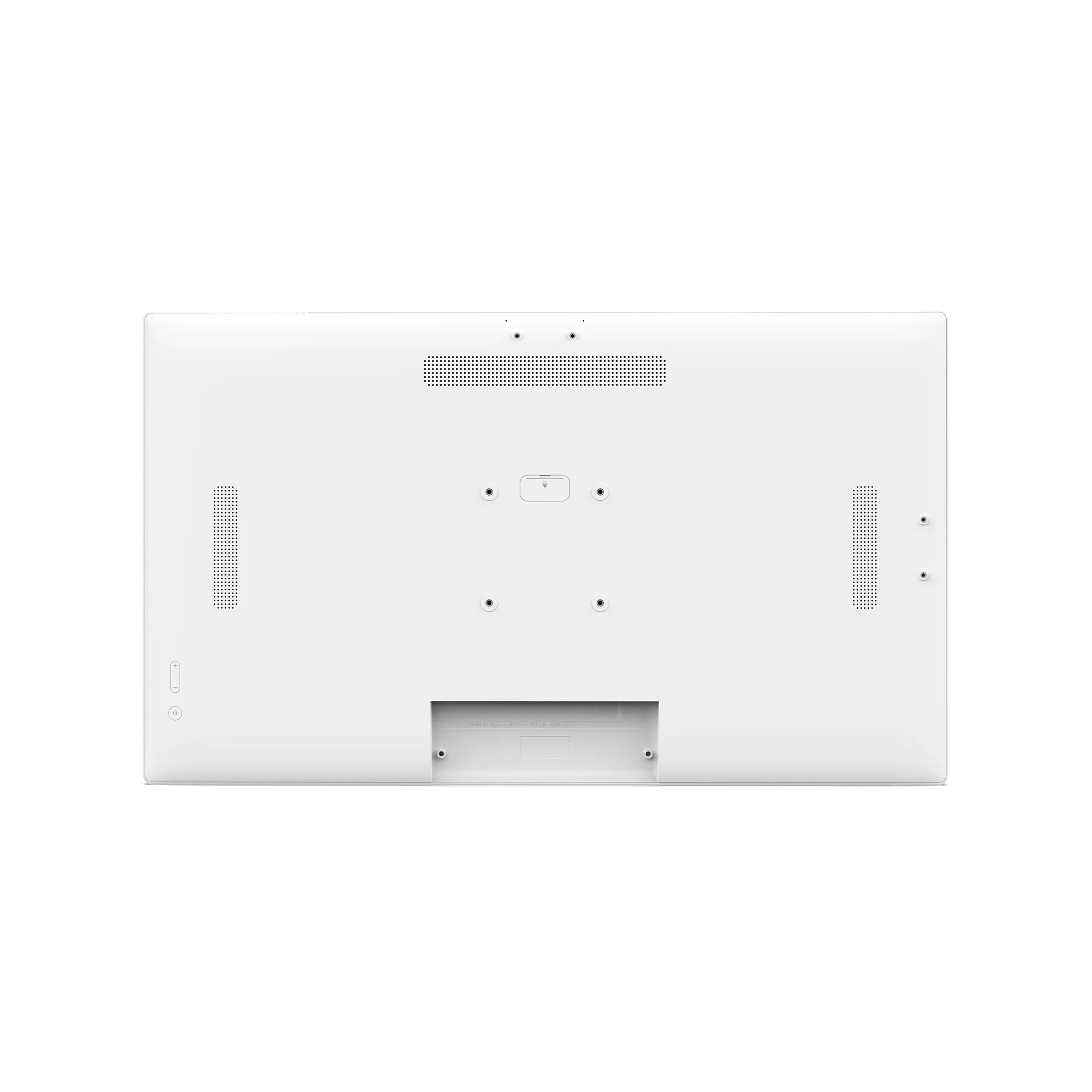

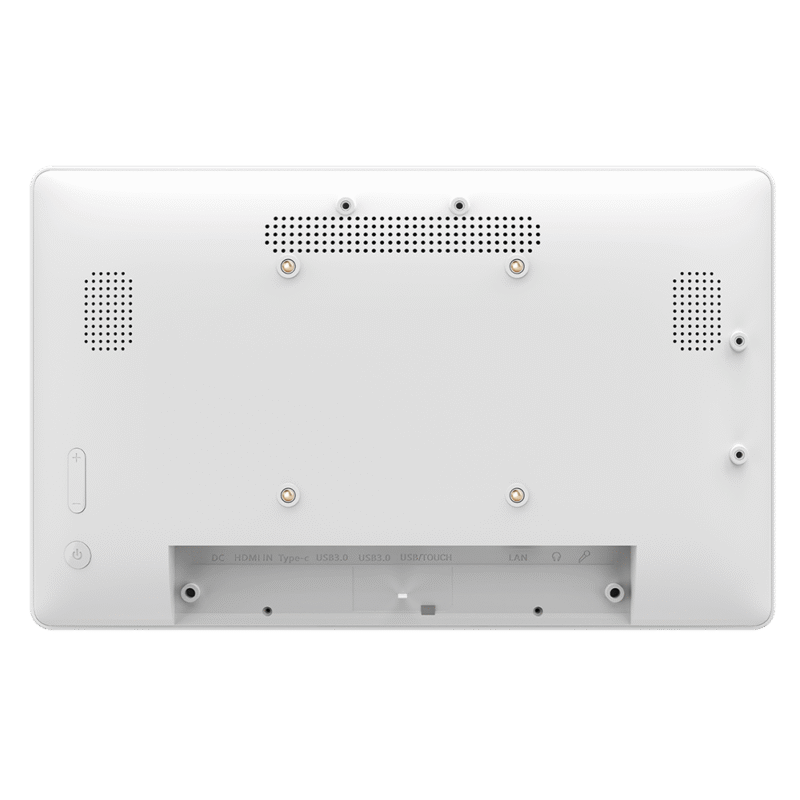

VESA 100 x 100mm
Flexibly Adjust Position for Best Viewing Comfort And Space Efficiency.
Customize your workspace setup to suit your preferences and needs by mounting your monitor on a wall or an adjustable arm. You can free up desk space, reduce clutter, and achieve better ergonomics, leading to increased comfort and productivity.
NW1693T | NW1696T | NW1698T | NW1695T
16" Touchscreen Signage
SKU: NW1693T
RK3399 Dual-core cortex A72+Quad-core cortex A53 | 2GB RAM | 16GB ROM
SKU: NW1696T
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
SKU: NW1698T
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
SKU: NW1695T
RK3588 Quad-core cortex A55+Quad-core cortex A76 | 4GB RAM | 32GB ROM
NW1693T | NW1696T | NW1698 | NW1695T
Specifications
Display
Diagonal Size
16-inch (LCD)
Panel Type
IPS
Resolution
1920 x 1200 pixels
Aspect Ratio
16:10
Number of Colors
16.7M Colors
Color Gamut
45% NTSC
Viewing Angle
R/L 89/89, U/D 89/89
Display Mode
Normally black
Contrast Ratio
1000:1
Response Time
9ms
Back-light Type
Eled
Luminance
3000 nits
Number of Points
10-point
Interface for Touch
USB
Processor
CPU
- NW1693T: RK3399 Dual-core cortex A72+Quad-core cortex A53
- NW1696T: RK3566 Quad-core cortex A55
- NW1698T: RK3568 Quad-core cortex A55
- NW1695T: RK3588 Quad-core cortex A55+Quad-core cortex A76
RAM
- NW1693T: 2GB (Optional 4GB)
- NW1696T: 2GB (Optional 4GB)
- NW1698T: 2GB (Optional 4GB)
- NW1695T: 4GB (Optional 8GB)
ROM
- NW1693T: 16GB (Optional 32GB)
- NW1696T: 16GB (Optional 32GB)
- NW1698T: 16GB (Optional 32GB)
- NW1695T: 32GB (Optional 64GB)
Operating System
- NW1693T: Android 12
- NW1696T: Android 12
- NW1698T: Android 12
- NW1695T: Android 12
Size and Weight
Dimensions
370.8 × 248.3 mm (L × W)
Wireless
WiFi
- NW1693T: IEEE 802.11b/g/n/a/ac
- NW1696T: IEEE 802.11b/g/n
- NW1698T: IEEE 802.11b/g/n
- NW1695T: IEEE 802.11b/g/n/a/ac/ax (wifi 6)
Bluetooth
- NW1693T: Bluetooth 5.2
- NW1696T: Bluetooth 4.2
- NW1698T: Bluetooth 4.2
- NW1695T: Bluetooth 5.2
I/O Ports
USB
- NW1693T: USB 2.0 Host
- NW1696T: USB 2.0 Host
- NW1698T: USB 2.0 Host
USB
- NW1693T: USB 3.0 Host
- NW1696T: USB 3.0 Host
- NW1698T: USB 3.0 Host
- NW1695T: USB 3.0 Host*2
USB Type-C
- NW1693T: Full Function (Except for charging function)
- NW1696T: USB OTG Only
- NW1698T: USB OTG Only
- NW1695T: Full Function (Except for charging function)
HDMI
- NW1693T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, etc
- NW1696T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, etc
- NW1698T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, etc
- NW1695T: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, 3840*2160, etc
Power Port
DC power input
Media Format
Video Format
- NW1693T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, etc. support up to 4K
- NW1696T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, etc. support up to 4K
- NW1698T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, etc. support up to 4K
- NW1695T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1, etc., support up to 8K@60fps
Audio Format
MP3/WMA/AAC/WAV/OGG, etc
- JPEG/PNG/GIF,etc
Others
Color
White/Black
VESA
100mm × 100mm
Button
Power/Vol+/Vol-
G-sensor
Support
Speaker
4Ω/3W*2
Microphone
Standard dual Microphone, Support noise reduction and echo cancellation
NFC
- Optional, 13.56MHz, ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards
Camera
- Optional External USB type camera (vertical portrait , 8.0MP with wide-angle and wide dynamic)
Language
Multi-language
Certificates
CCC/CE/FCC
Operating Temperature
0℃-40℃
Storage Temperature
-20℃-60℃
Operating Humidity
20~80%RH
Storage Humidity
10~95%RH
