WF1732T | WF1733T | WF1736T | WF1738T

17.3-inch Touchscreen Signage

Features 1920*1080 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.

DISPLAY

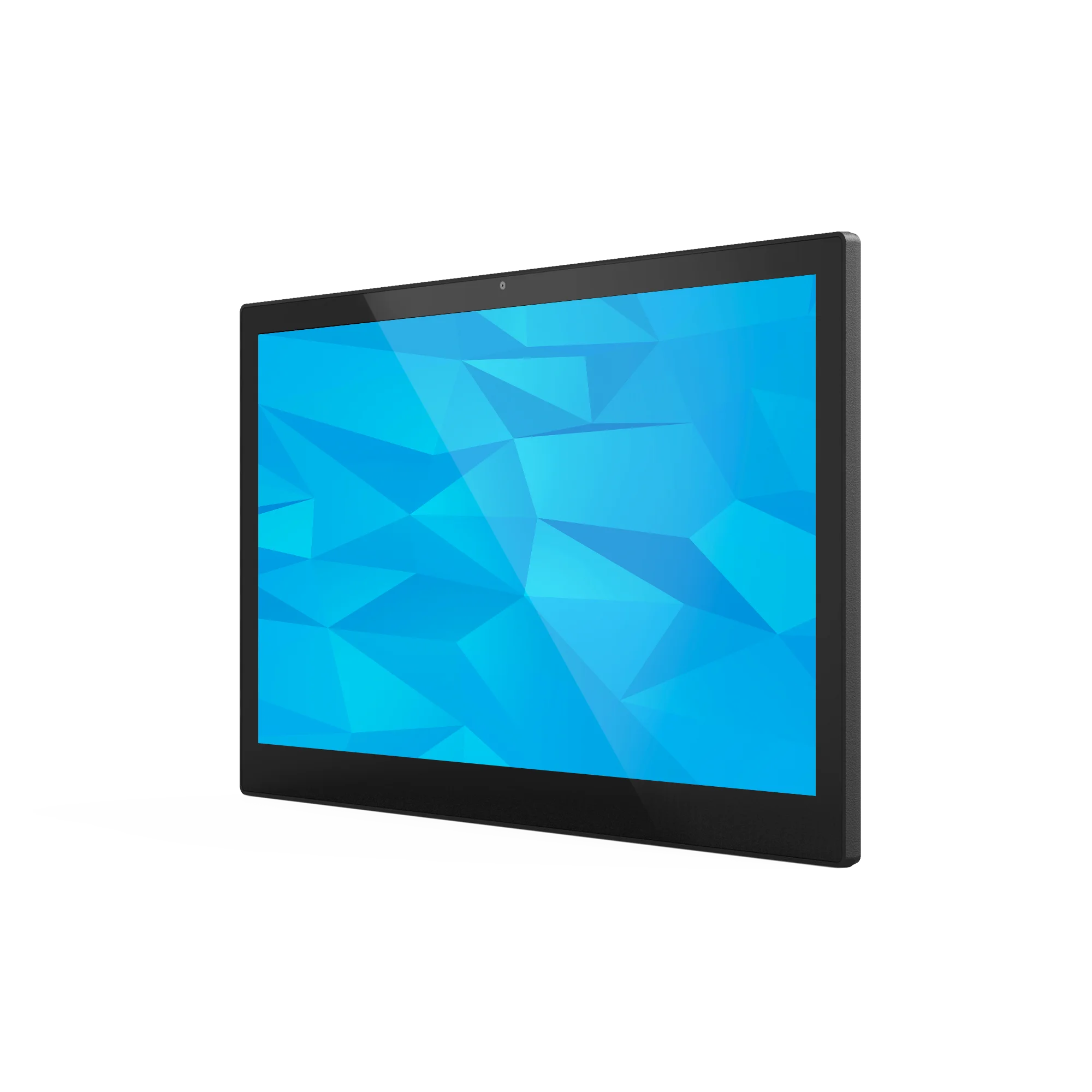

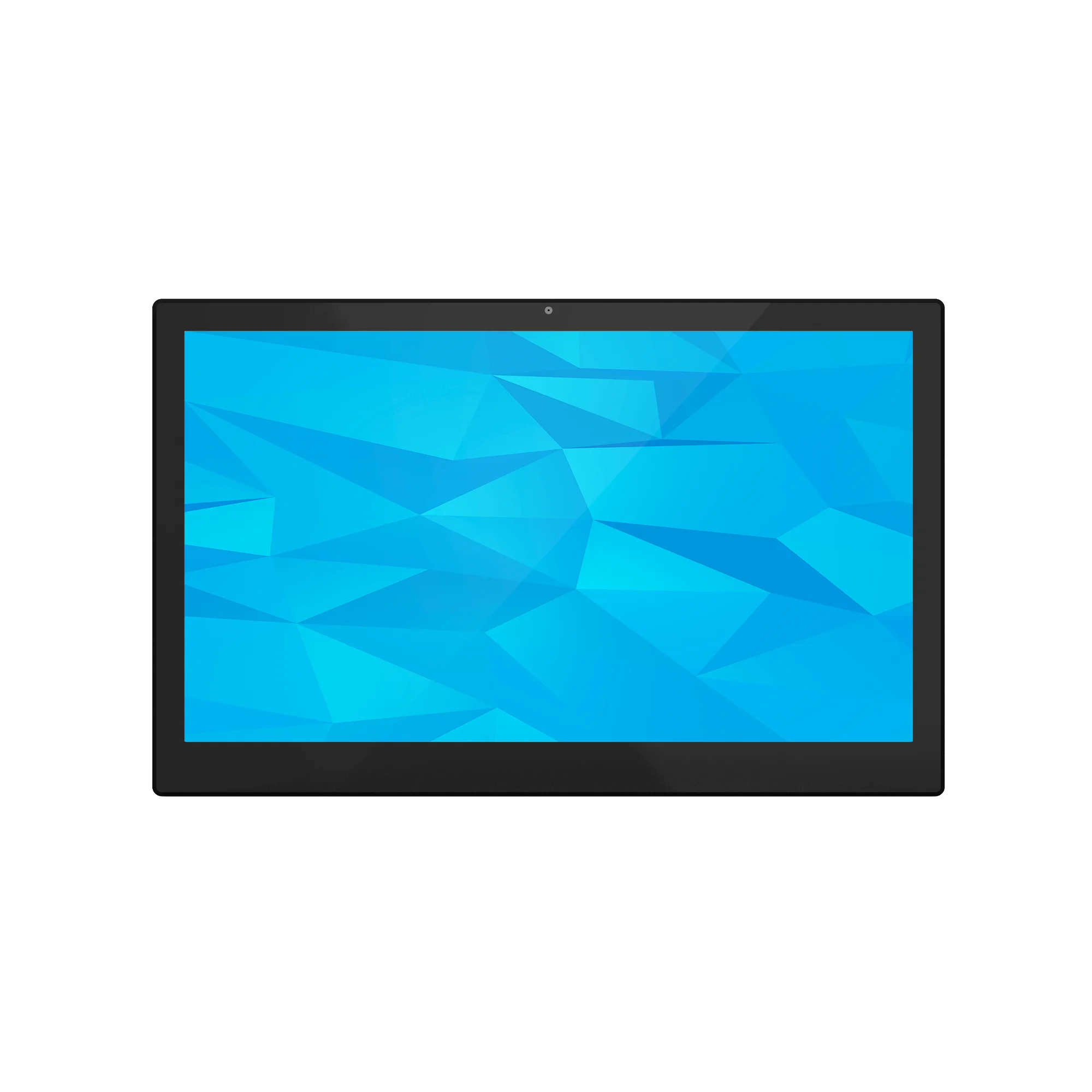

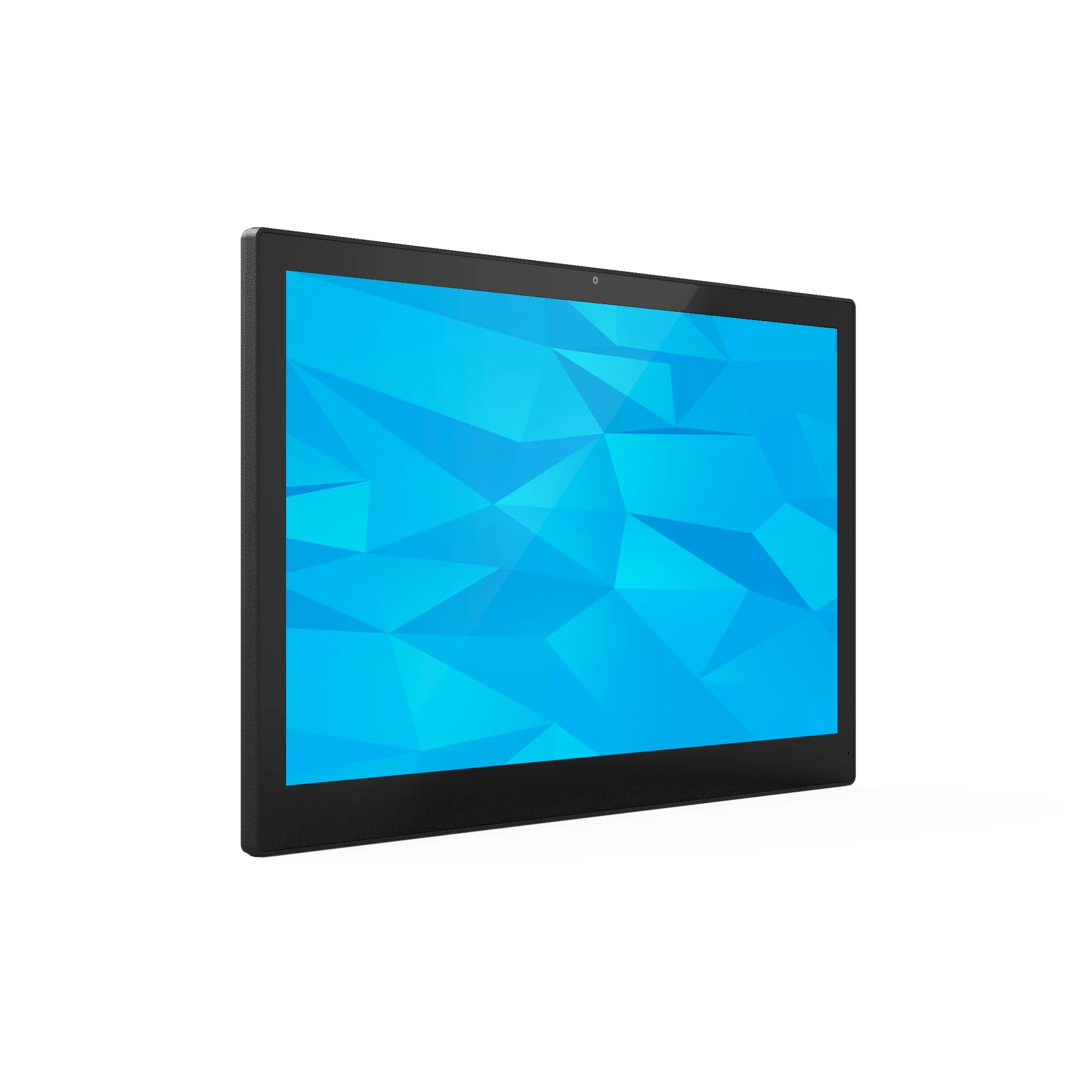

17.3-inch HD Multi-Touch Display

The portable monitor features a 17.3-inch touchscreen with a full HD resolution of 1920×1080. 10-point multi-touch screen enables multiple people to use a device at once, or one person can use multiple fingers for complex inputs, which streamlines workflow and improves efficiency.

Screen Size

17.3-Inch HD Display

Resolution

1920 × 1080

Aspect Ratio

16 : 9

Touchscreen

10-Point Multi-Touch

OPERATING SYSTEM

Providing A More Stable, Secure, And Smooth Display Experience.

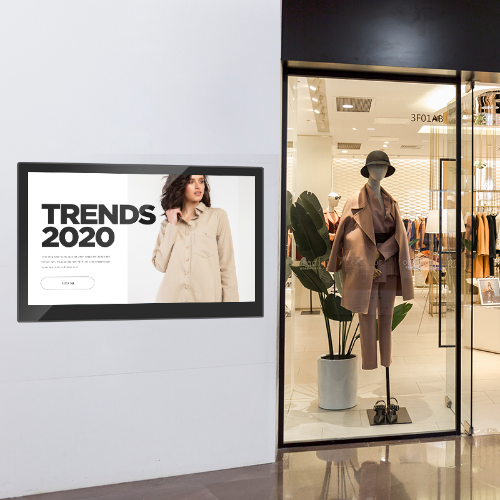

Utilize the intelligent split-screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.

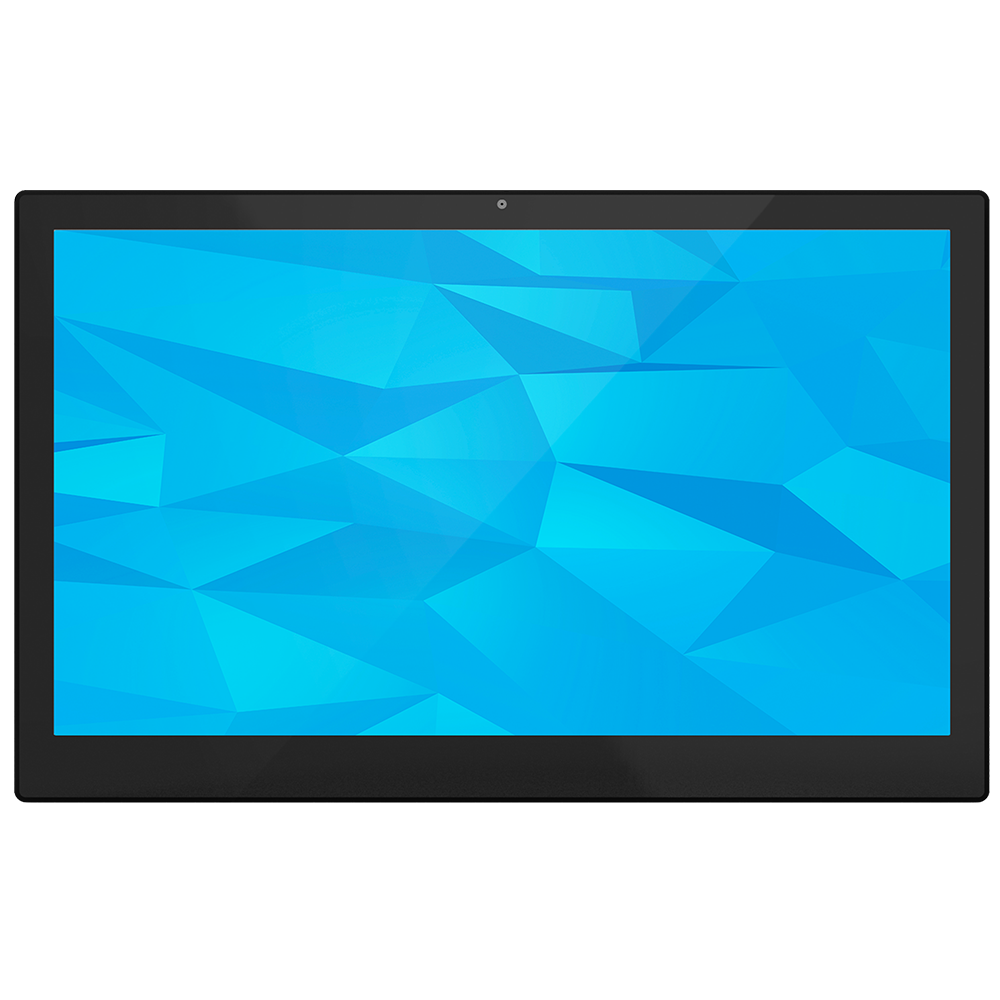

BUILT-IN CAMERA, SPEAKERS AND MIC

All In One.

Requiring no additional setup or external hardware, making it easy to quickly initiate video calls or record videos without needing to connect extra peripherals. This also contributes to portability and space-saving benefits.

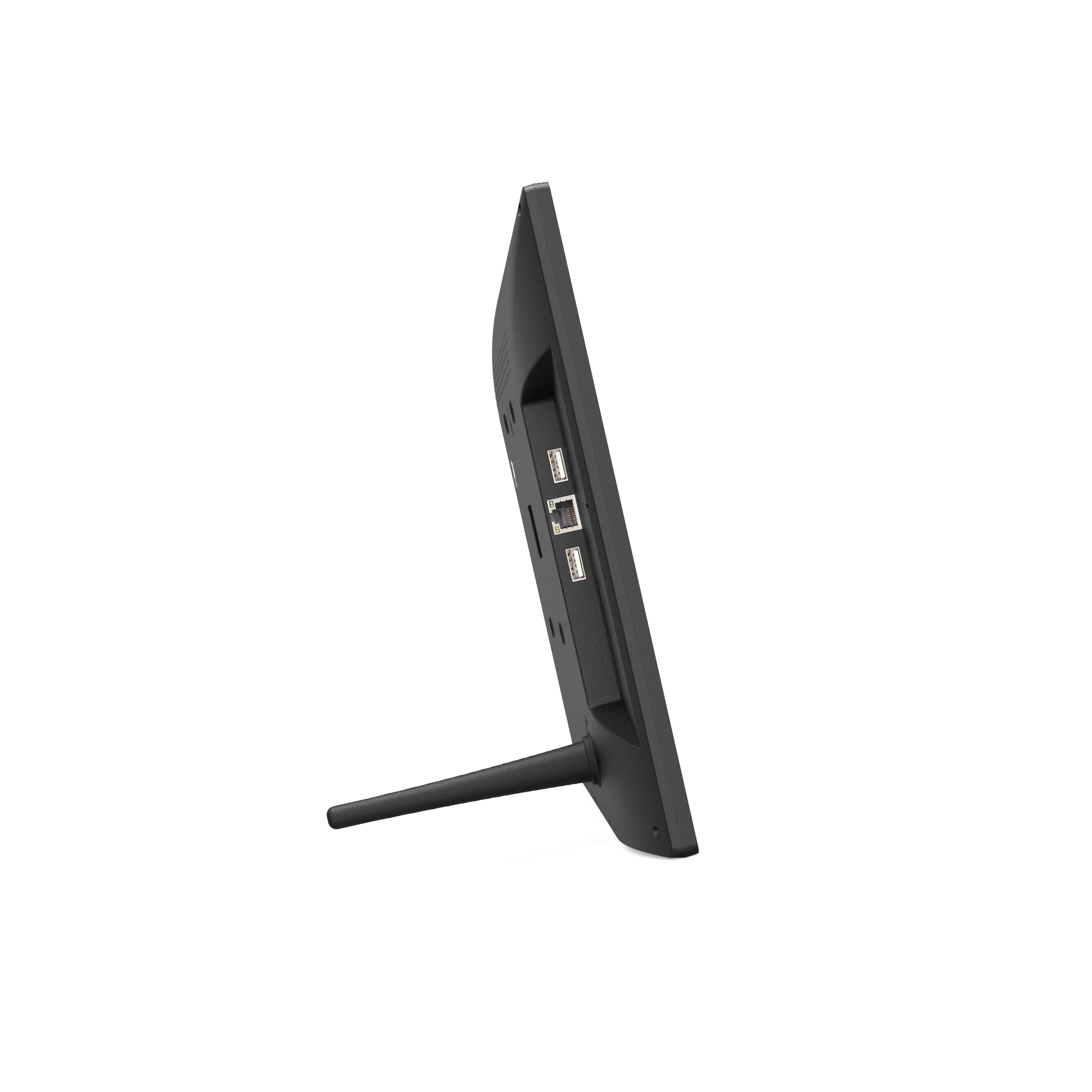

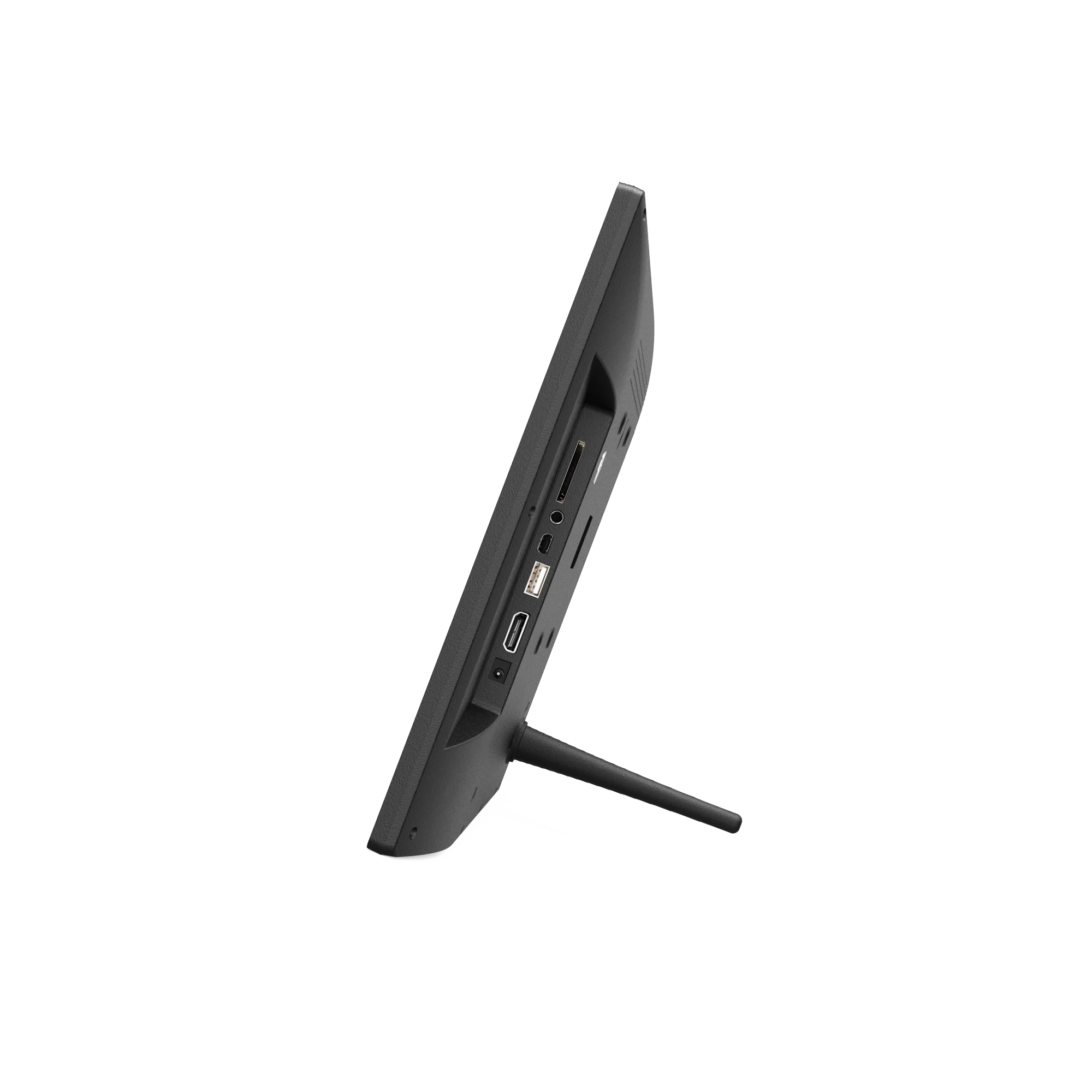

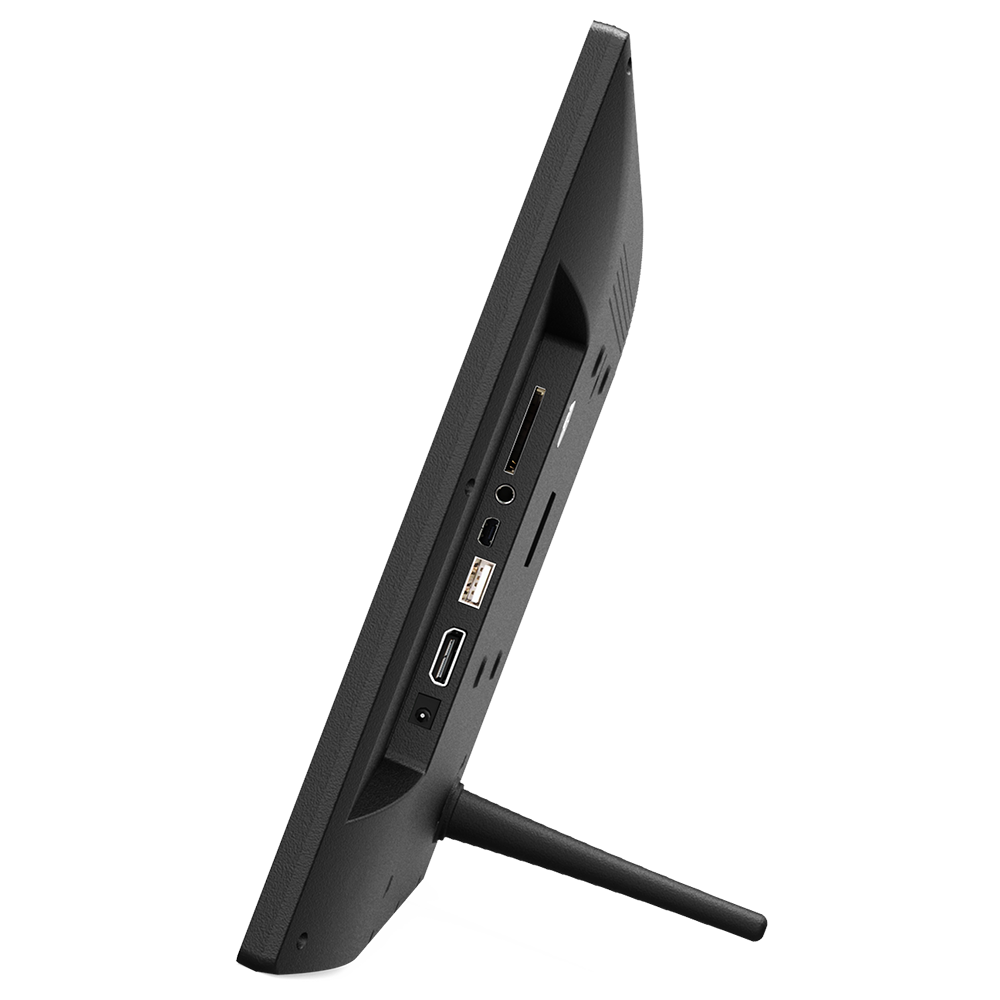

BUILT-IN KICSTAND

Ergonomic Stand For Custom Comfort.

The portable touchscreen signage has a built-in kickstand that allows you to easily prop it up at different angles, making it comfortable to use while sitting or standing. This not only makes it easier to view, but also helps to reduce the strain on your neck and eyes.

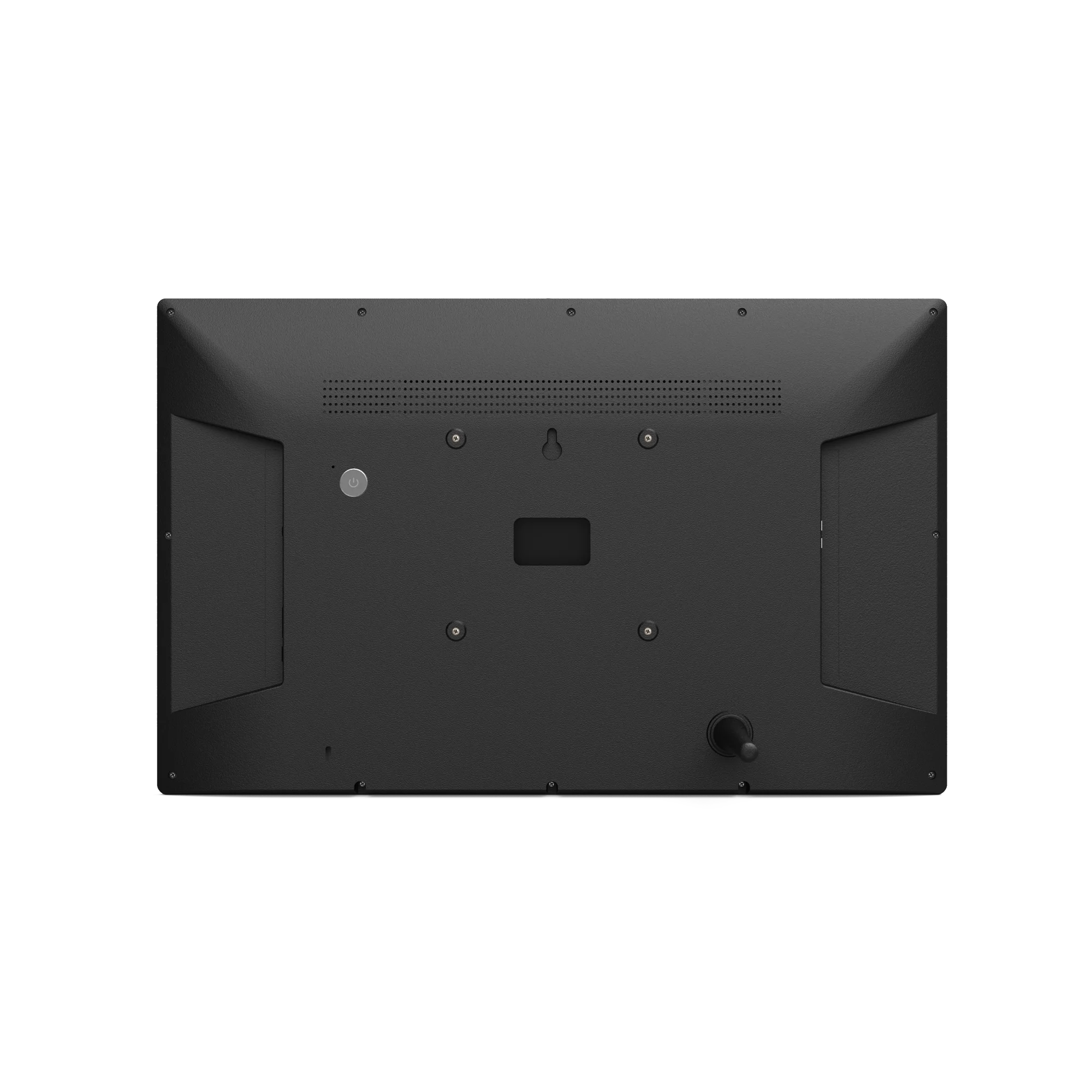

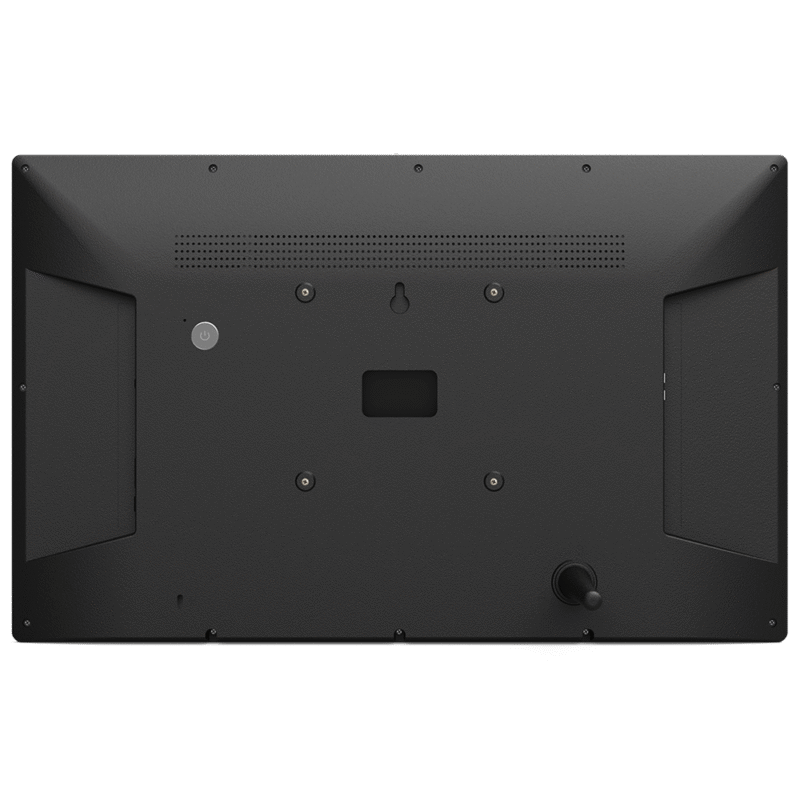

VESA 100 x 100mm

Mount Wherever Suits Your Needs.

Standard 100×100 VESA holes on the back allow you to mount the monitor to a wall bracket or arm bracket to ensure the best placement in small spaces. Elevate your productivity and embrace unrivaled convenience with this portable display.

DESIGN

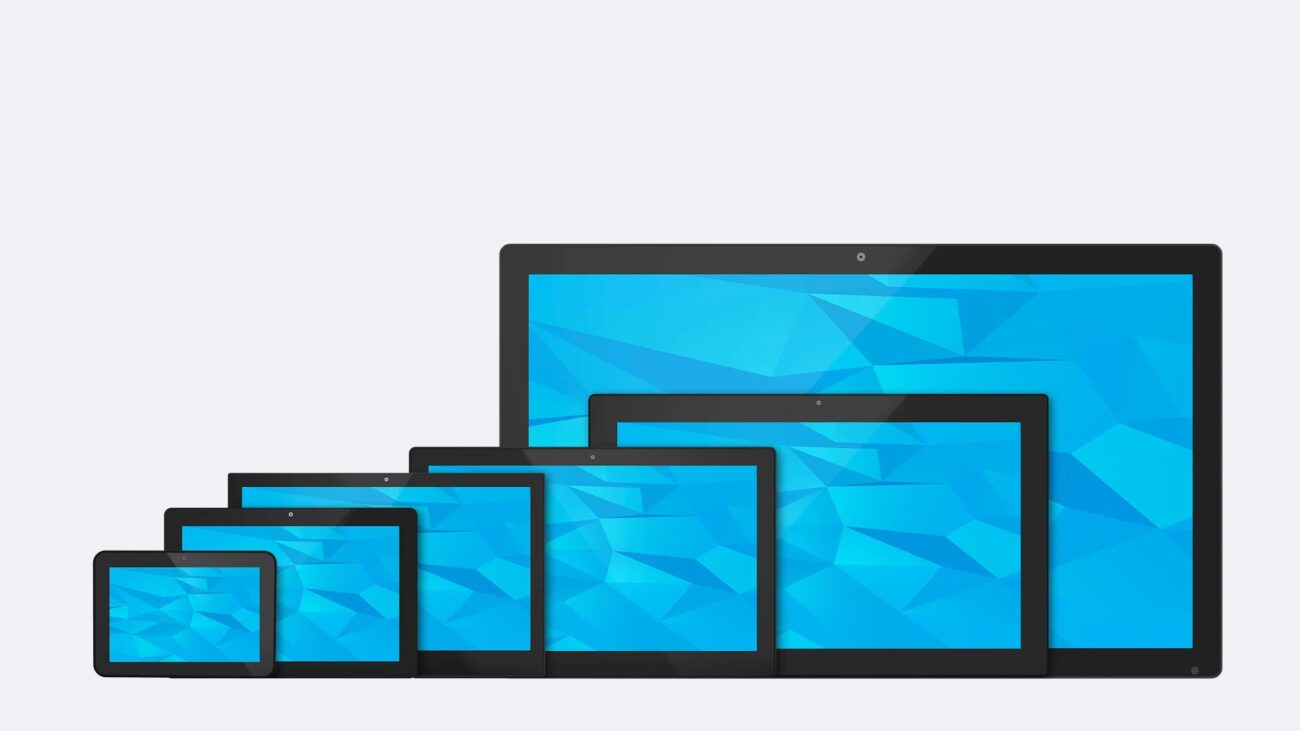

Brilliant Touchscreen from 8" to 55".

WF1732T | WF1733T | WF1736T | WF1738T

17.3" Touchscreen Signage

SKU: WF1732T

RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM

SKU: WF1733T

RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM

SKU: WF1736T

RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM

SKU: WF1738T

RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM

WF1732T | WF1733T | WF1736T | WF1738T

Specifications

Display

Diagonal Size

17.3-inch

Panel Type

LCD

Resolution

1920 x 1080 pixels

Aspect Ratio

16:9

Viewing Angle

R/L 85/85, U/D 85/85

Display Mode

Normally black

Contrast Ratio

800:1

Luminance

250 nits

Number of Points

10-point

Processor

CPU

RAM

ROM

Operating System

Size and Weight

Dimensions

417.19 x 262.8 x 26 mm (L × W × D)

Wireless

WiFi

Bluetooth

I/O Ports

USB

USB

Mini USB

HDMI

Power Port

DC power input

Earphone

3.5mm earphone

RJ45

Ethernet interface

Media Format

Video Format

Audio Format

MP3/WMA/AAC, etc


Others

Color

Black

VESA

100mm × 100mm

Speaker

2W*2

Microphone

Single microphone

Camera

Language

Multi-language

Certificates

CE/FCC

Operating Temperature

0℃-40℃

In The Box

Adapter

12V/3A

User Manual

×1

Stand

×1
