WF1852T | WF1853T | WF1856T | WF1858T | WF1855T

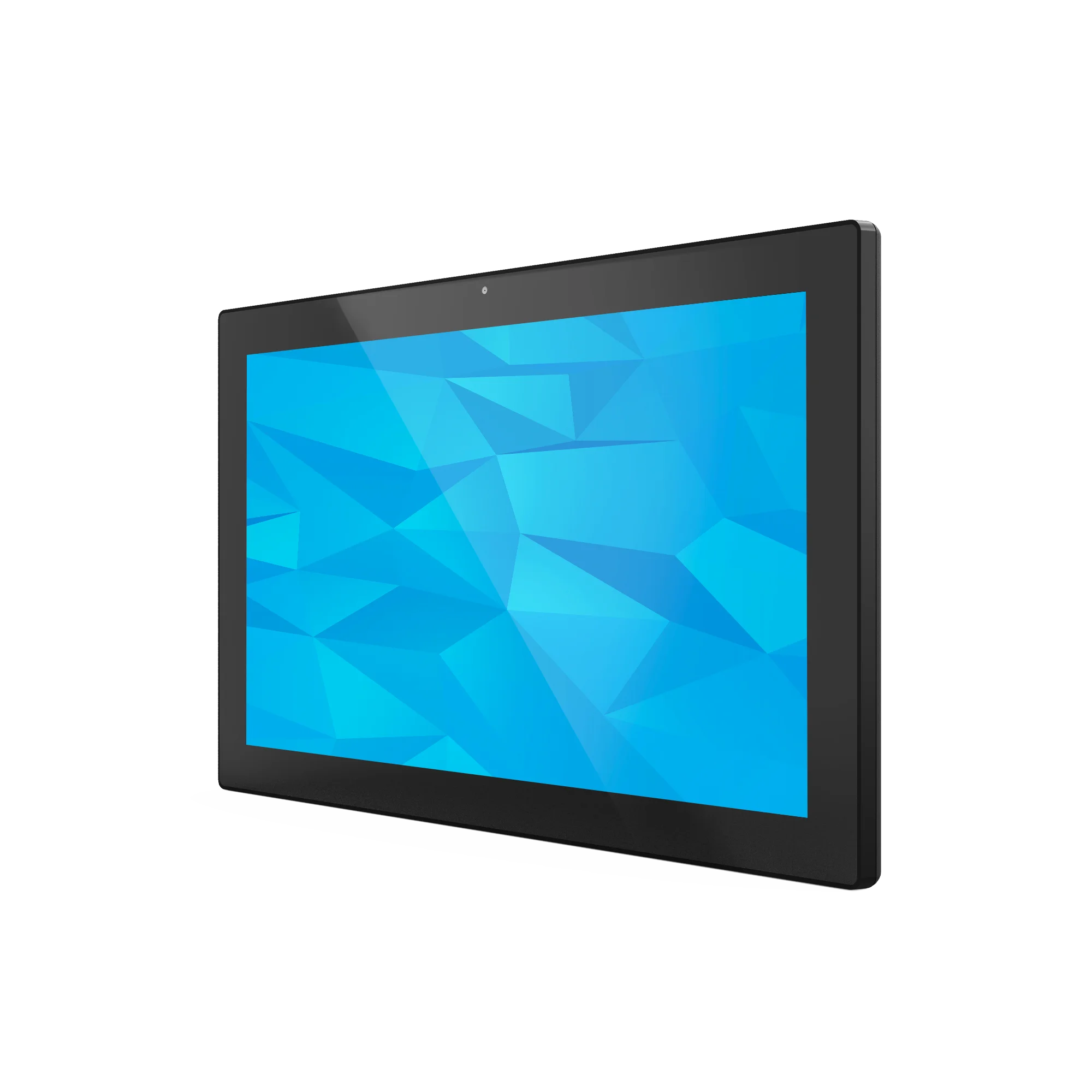

18.5-inch Touchscreen Signage
Features 1920*1080 HD resolution. Supports up to 10-point capacitive touch function, accurate and high sensitivity. An intuitive FHD touch display lets you take full control with the tap of a finger.
DISPLAY

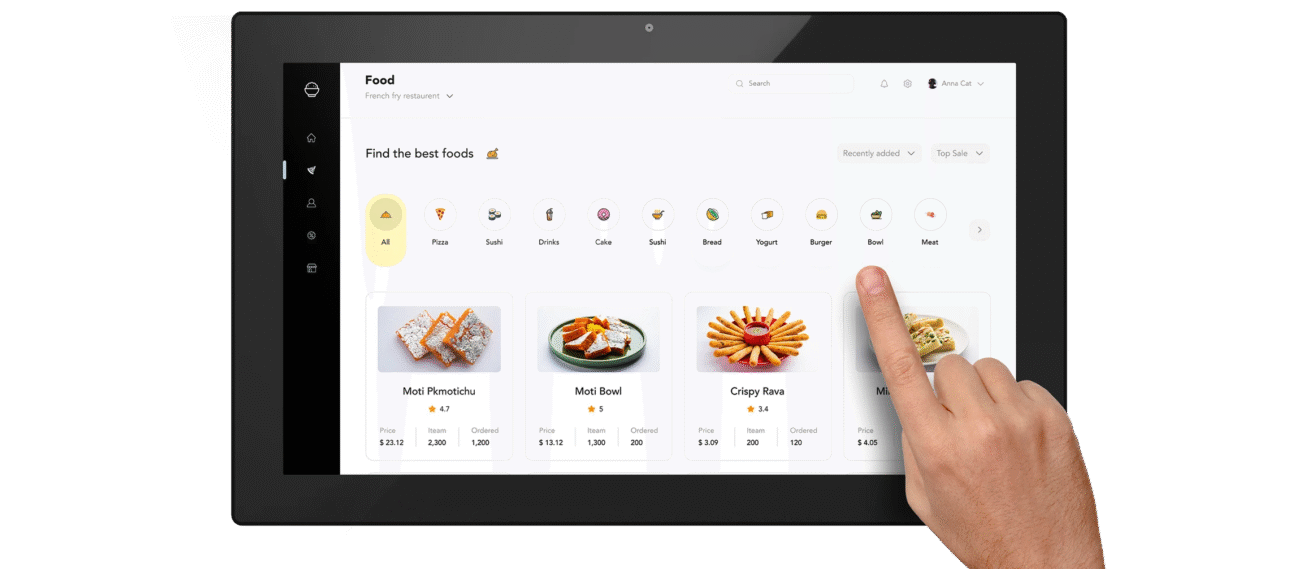

18.5-inch HD Multi-Touch Display
The portable monitor features a 18.5-inch touchscreen with a full HD resolution of 1920×1080. 10-point multi-touch screen enables multiple people to use a device at once, or one person can use multiple fingers for complex inputs, which streamlines workflow and improves efficiency.
Screen Size
18.5-Inch HD Display
Resolution
1920 × 1080
Aspect Ratio
16 : 9
Touchscreen
10-Point Multi-Touch
OPERATING SYSTEM

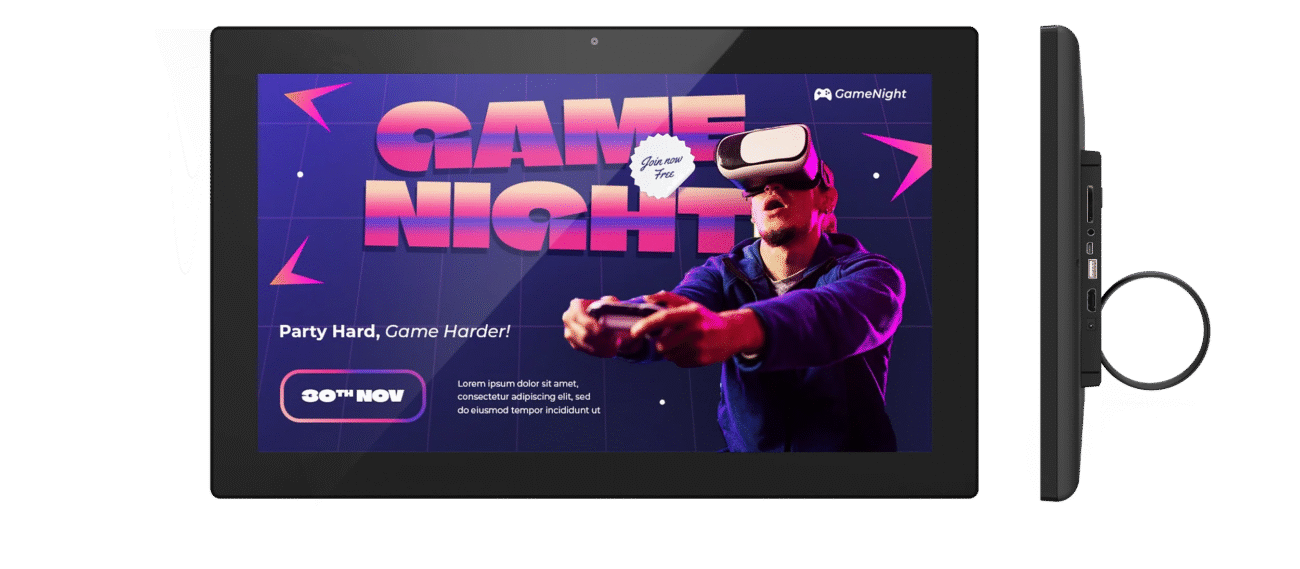

Providing A More Stable, Secure, And Smooth Display Experience.

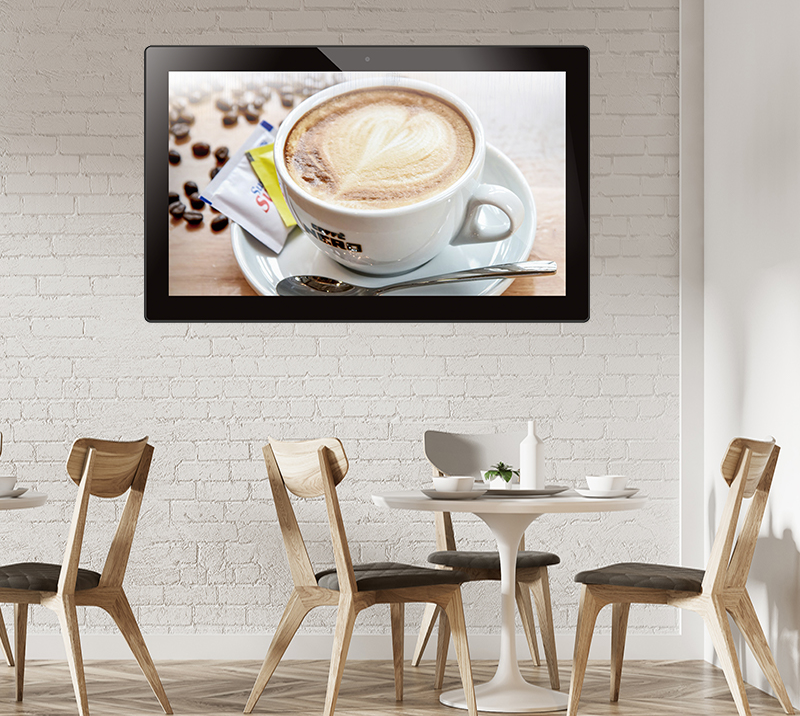

Utilize the intelligent split-screen feature to display various content formats such as images, videos. Ideal for showcasing multiple ads, promotions, or brand messages side by side, creating engaging visual works.

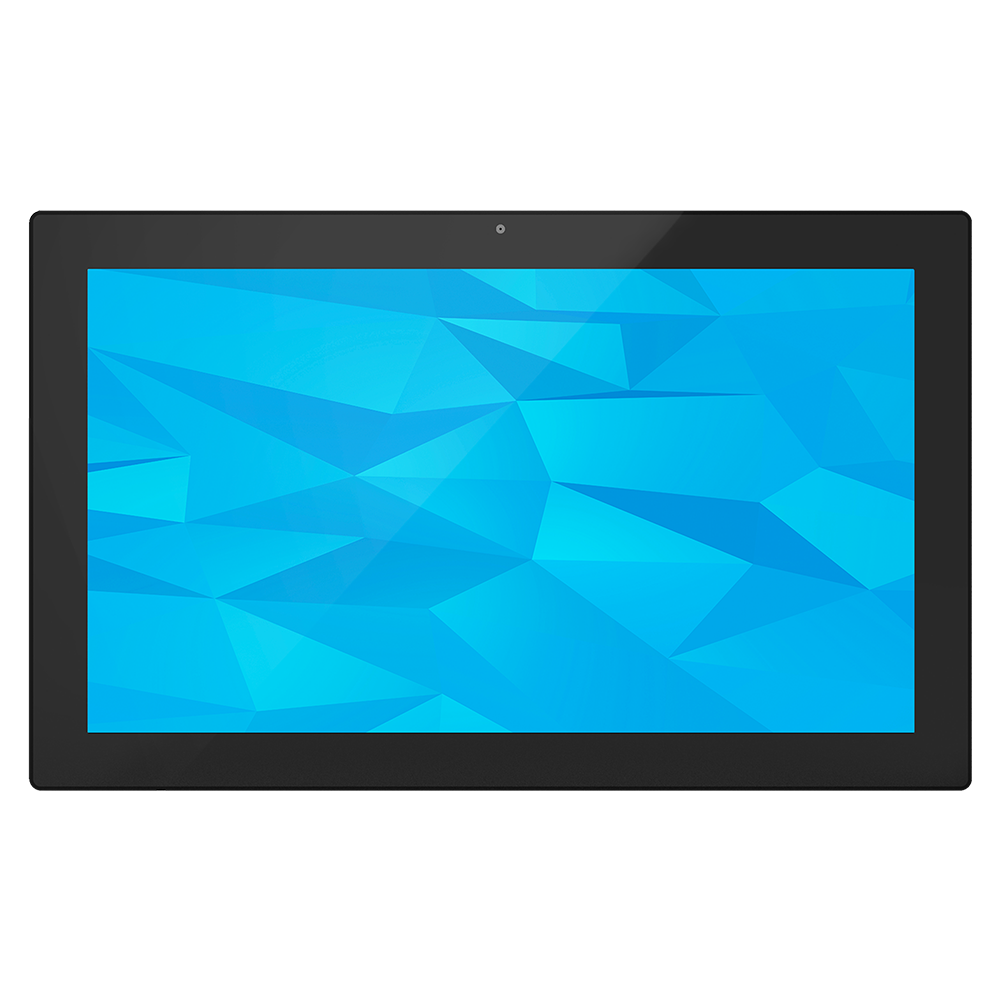

BUILT-IN CAMERA, SPEAKERS AND MIC
All In One.
Requiring no additional setup or external hardware, making it easy to quickly initiate video calls or record videos without needing to connect extra peripherals. This also contributes to portability and space-saving benefits.

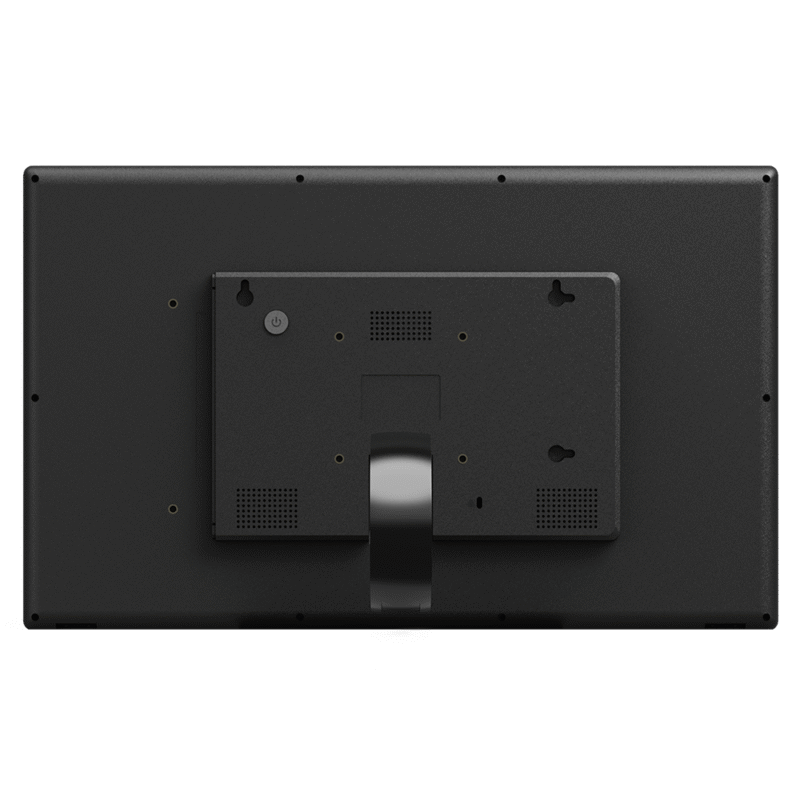

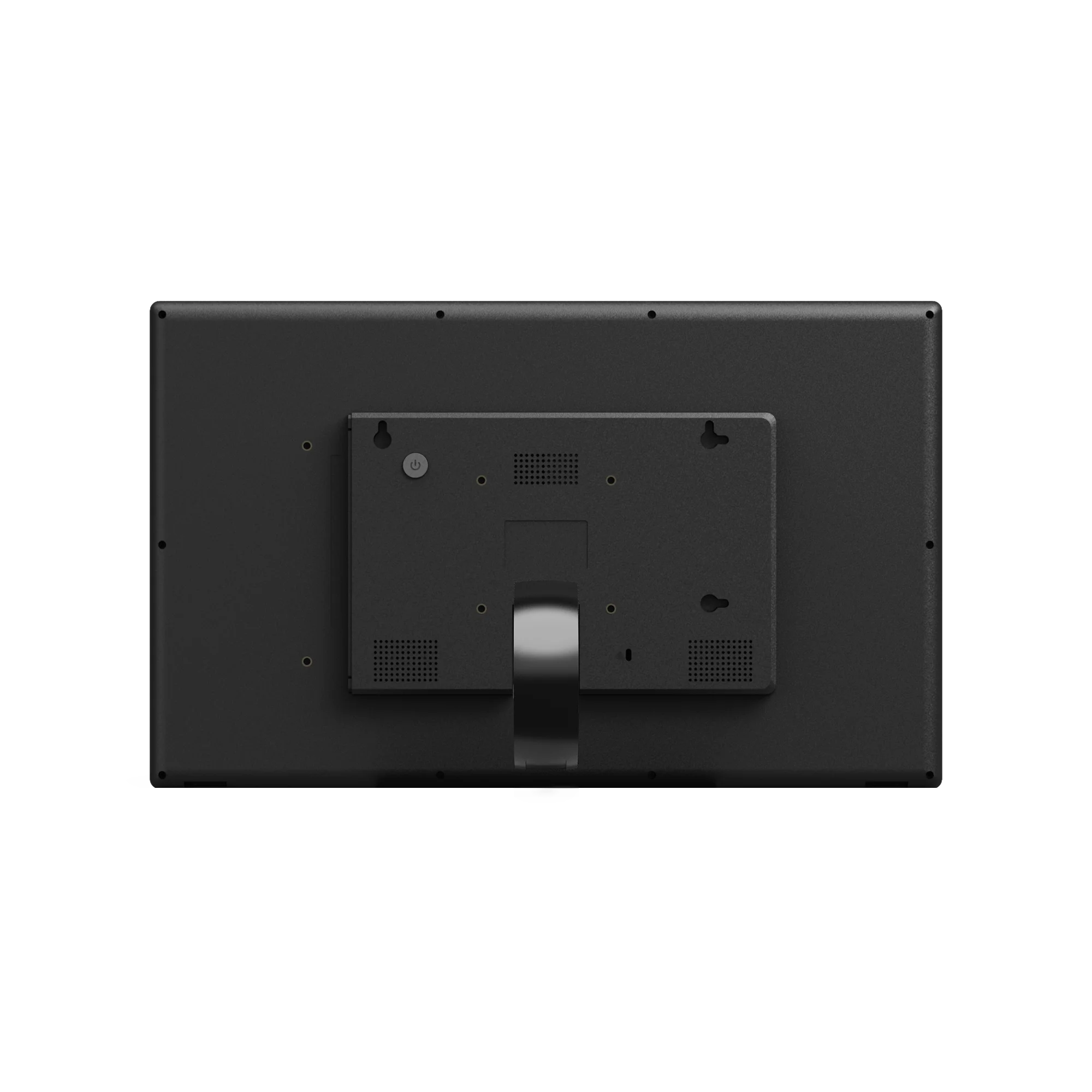

VESA 75 x 75mm
Mount Wherever Suits Your Needs.
Standard 100×100 VESA holes on the back allow you to mount the monitor to a wall bracket or arm bracket to ensure the best placement in small spaces. Elevate your productivity and embrace unrivaled convenience with this portable display.
WF1852T | WF1853T | WF1856T | WF1858 | WF1855T
18.5" Touchscreen Signage
SKU: WF1852T
RK3288 Quad-core cortex A17 | 2GB RAM | 16GB ROM
SKU: WF1853T
RK3399 Dual-core A72+Quad-core A53 | 2GB RAM | 16GB ROM
SKU: WF1856T
RK3566 Quad-core cortex A55 | 2GB RAM | 16GB ROM
SKU: WF1858T
RK3568 Quad-core cortex A55 | 2GB RAM | 16GB ROM
SKU: WF1855T
RK3588 Quad-core cortex A55+Quad-core cortex A76 | 4GB RAM | 32GB ROM
WF1852T | WF1853T | WF1856T | WF1858 | WF1855T
Specifications
Display
Diagonal Size
18.5-inch
Panel Type
LCD
Resolution
1920 x 1080 pixels
Aspect Ratio
16:9
Viewing Angle
R/L 85/85, U/D 85/85
Display Mode
Normally black
Contrast Ratio
800:1
Luminance
250 nits
Number of Points
10-point
Processor
CPU
- WF1852T: RK3288 Quad-core cortex A17
- WF1853T: RK3399 Dual-core A72+Quad-core A53
- WF1856T: RK3566 Quad-core cortex A55
- WF1858T: RK3568 Quad-core cortex A55
- WF1855T: RK3588 Quad-core cortex A55+Quad-core cortex A76
RAM
- WF1852T: 2GB
- WF1853T: 2GB (Optional 4GB)
- WF1856T: 2GB (Optional 4GB)
- WF1858T: 2GB (Optional 4GB)
- WF1855T: 4GB (Optional 8GB)
ROM
- WF1852T: 16GB
- WF1853T: 16GB (Optional 32GB/64G)
- WF1856T: 16GB (Optional 32GB/64G)
- WF1858T: 16GB (Optional 32GB/64G)
- WF1855T: 32GB (Optional 64G)
Operating System
- WF1852T: Android 5.1/6.0/8.1/10.0
- WF1853T: Android 7.1/10.0
- WF1856T: Android 11
- WF1858T: Android 11
- WF1855T: Android 12
Size and Weight
Dimensions
468 x 288 x 38 mm (L × W × D)
Wireless
WiFi
- WF1852T: IEEE 802.11b/g/n
- WF1853T: IEEE 802.11b/g/n/a/ac
- WF1856T: IEEE 802.11b/g/n
- WF1858T: IEEE 802.11b/g/n
- WF1855T: IEEE 802.11a/b/g/n/ac/ax (WiFi6)
Bluetooth
- WF1852T: Bluetooth 4.2
- WF1853T: Bluetooth 4.2
- WF1856T: Bluetooth 4.2
- WF1858T: Bluetooth 4.2
- WF1855T: Bluetooth 5.2

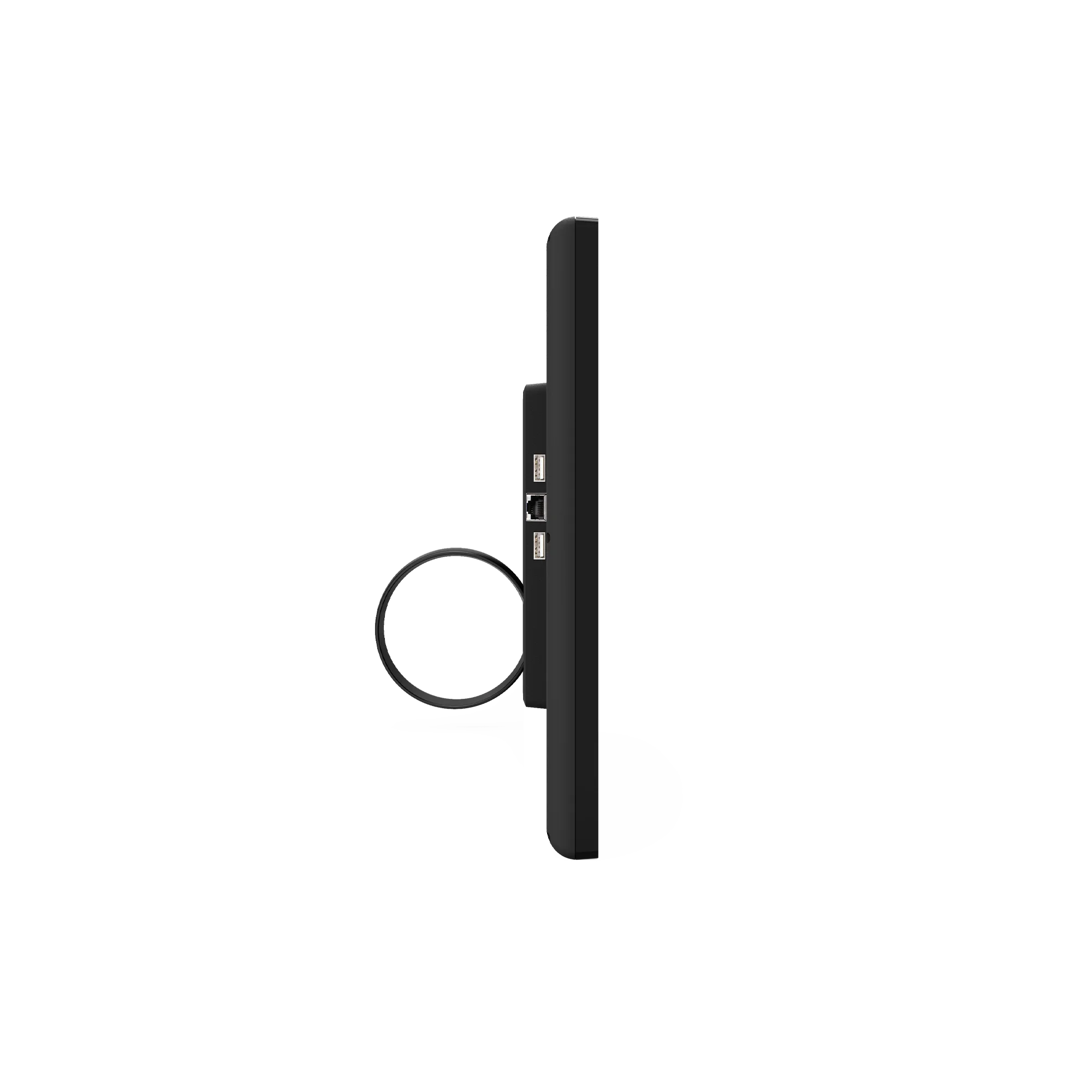

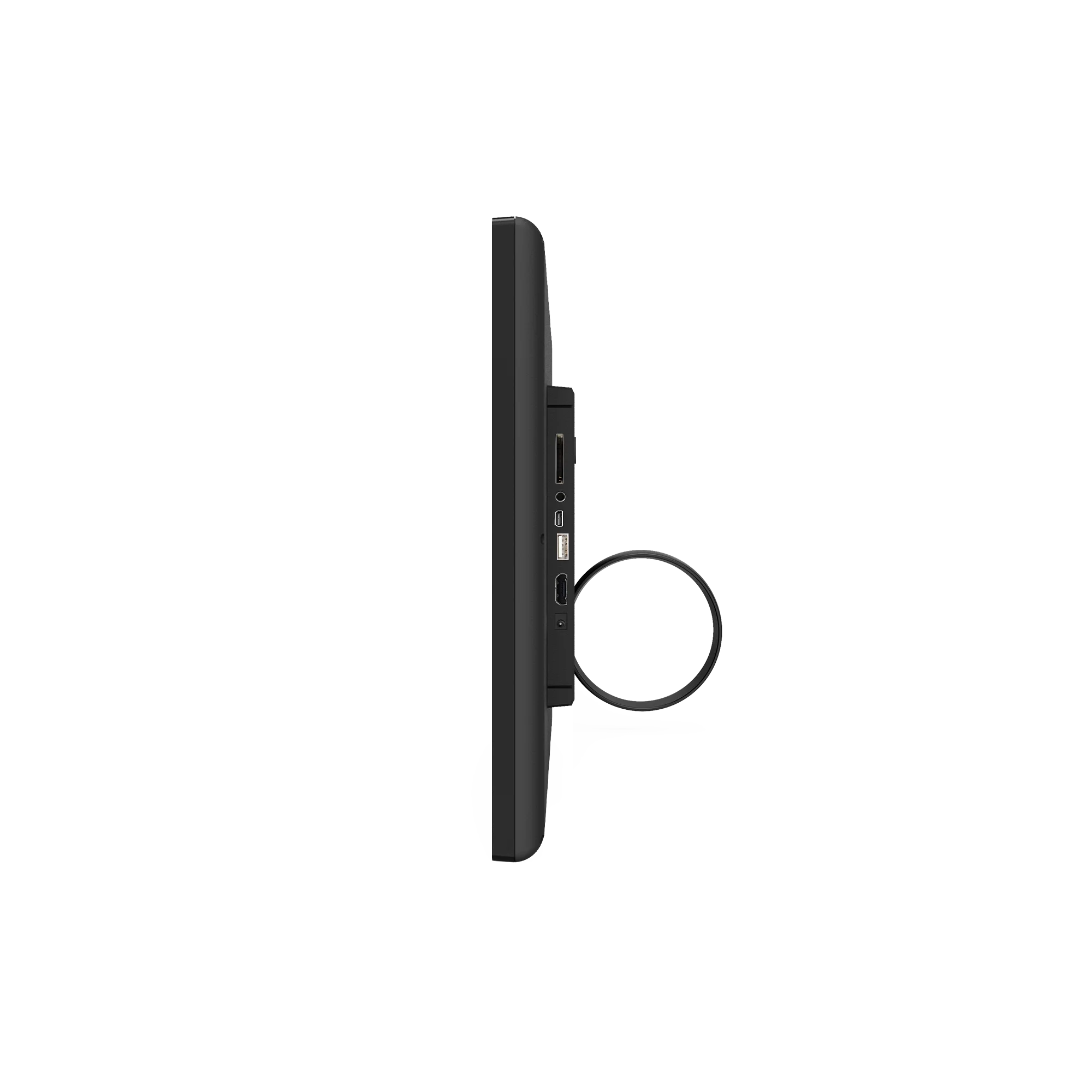

I/O Ports
USB
- WF1852T: USB 2.0 Host*3
- WF1853T: USB 2.0 Host*2
- WF1856T: USB 2.0 Host*2
- WF1858T: USB 2.0 Host*2
- WF1855T: USB 2.0 Host*2
USB
- WF1853T: USB 3.0 Host
- WF1856T: USB 3.0 Host
- WF1858T: USB 3.0 Host
- WF1855T: USB 3.0 Host
Mini USB
- WF1852T: USB OTG
- WF1853T: USB OTG
- WF1856T: USB OTG
- WF1858T: USB OTG
USB Type-C
- WF1855T: Full Function (Except for charging function)
HDMI
- WF1852T: HDMI output
- WF1853T: HDMI output
- WF1856T: HDMI output
- WF1858T: HDMI output
- WF1855T: HDMI iutput
Power Port
DC power input
Media Format
Video Format
- WF1852T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K
- WF1853T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1856T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1858T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
- WF1855T: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, VP9, etc., support up to 4K
Audio Format
MP3/WMA/AAC, etc
- WF1852T: JPEG
- WF1853T: JPEG
- WF1856T: JPEG
- WF1858T: JPEG/PNG
- WF1855T: JPEG/PNG
Others
Color
Black
VESA
75mm × 75mm
Speaker
3W*2
Microphone
Single microphone
Camera
- WF1852T: Routine angle 2.0MP
- WF1853T: Routine angle 2.0MP
- WF1856T: Routine angle 5.0MP
- WF1858T: Routine angle 5.0MP
- WF1855T: Routine angle 5.0MP
Language
Multi-language
Certificates
CE/FCC
Operating Temperature
0℃-40℃
In The Box
Adapter
12V/3A
User Manual
×1
Stand
×1
